Hydrogen Compression Technologies: Balancing Energy Costs and Efficiency

Hydrogen is poised to be a cornerstone of the global transition toward clean and sustainable energy. With its versatility as a fuel for transportation, energy storage, and industrial applications, hydrogen holds immense promise in the drive to decarbonize the economy. However, one of the significant technical challenges that must be addressed to fully unlock hydrogen's potential is efficient compression. Compressing hydrogen for storage and transport is energy-intensive, and finding the right balance between energy costs and efficiency is crucial for its widespread adoption.

This article will delve into the complexities of hydrogen compression, exploring the various technologies currently in use, the trade-offs between them, and the latest innovations aimed at reducing energy consumption while maintaining high efficiency.

The Importance of Hydrogen Compression

Hydrogen is the smallest and lightest molecule, making it challenging to store and transport in large quantities without compressing it to higher pressures. Compression is essential in several hydrogen applications, including fuel cells for vehicles, industrial processes, and large-scale energy storage. Compressed hydrogen takes up significantly less space than gaseous hydrogen at ambient pressure, making it more practical for storage and distribution.

However, compressing hydrogen is not without its challenges. The energy required for compression can reduce the overall efficiency of the hydrogen value chain, eroding the environmental and economic benefits that hydrogen promises. This is particularly critical for applications such as fuel cell vehicles, where the energy cost of compression can impact the total efficiency of the system.

In this context, the choice of compression technology becomes a key factor in ensuring that hydrogen remains a viable and competitive clean energy source. Different compression methods have varying levels of efficiency and energy consumption, and selecting the right technology depends on the specific application and operational requirements.

Overview of Hydrogen Compression Technologies

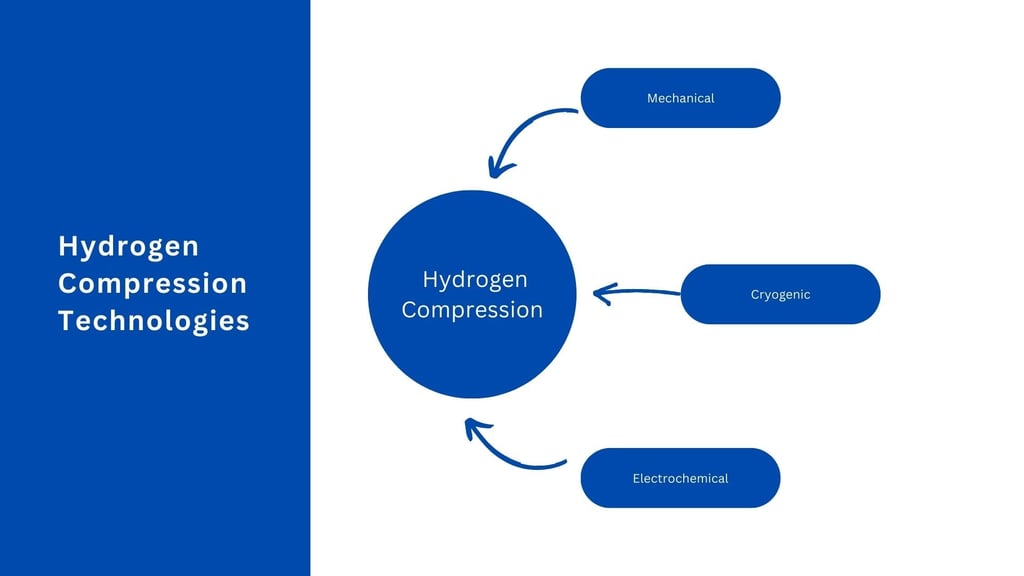

There are several technologies used to compress hydrogen, each with its own set of advantages and challenges. The most common hydrogen compression methods include mechanical compression, electrochemical compression, and cryogenic compression. Each of these methods comes with trade-offs in terms of energy consumption, cost, and technical complexity.

1. Mechanical Compression

Mechanical compression is the most widely used method for compressing hydrogen. Mechanical compressors work by reducing the volume of hydrogen gas, thereby increasing its pressure. These compressors are typically used in hydrogen fueling stations and industrial applications where large volumes of hydrogen need to be compressed quickly and reliably.

Mechanical compressors can be further categorized into two main types: reciprocating piston compressors and centrifugal compressors.

• Reciprocating Piston Compressors: In this type of compressor, a piston moves within a cylinder to compress the hydrogen gas. Reciprocating piston compressors are capable of reaching very high pressures, making them ideal for applications such as hydrogen fueling stations, where pressures of up to 700 bar are required. However, reciprocating compressors have several drawbacks, including high maintenance requirements due to the wear and tear on moving parts. Additionally, they tend to be less efficient than other types of compressors, with significant energy losses due to friction and heat.

• Centrifugal Compressors: Centrifugal compressors use rotating impellers to compress hydrogen gas. These compressors are generally more efficient than reciprocating compressors and have fewer moving parts, which reduces maintenance requirements. Centrifugal compressors are typically used for medium-pressure applications, such as industrial hydrogen production, where high flow rates are needed. However, they are not as effective as reciprocating compressors at reaching extremely high pressures, limiting their use in certain applications.

Energy Costs: The energy consumption of mechanical compressors depends on the pressure level required and the efficiency of the compressor itself. Compressing hydrogen to 700 bar, which is the standard for fuel cell vehicles, can consume 10-15% of the total energy content of the hydrogen. This energy cost is a significant factor in the overall efficiency of hydrogen as a fuel, making it crucial to improve the efficiency of mechanical compressors.

Ongoing research is focused on reducing the energy consumption of mechanical compressors through advanced materials, optimized compression cycles, and improved cooling systems. Innovations in materials science, such as the use of high-strength alloys and ceramics, are helping to reduce friction and wear, thereby improving efficiency and extending the lifespan of the compressors.

2. Electrochemical Compression

Electrochemical compression is an emerging technology that offers a promising alternative to mechanical compression. In an electrochemical compressor, hydrogen gas is ionized at the anode of an electrochemical cell, and the resulting protons pass through a proton exchange membrane (PEM) to the cathode, where they recombine to form hydrogen gas at a higher pressure. This process allows hydrogen to be compressed without the need for moving parts, which can significantly reduce maintenance costs and increase reliability.

Electrochemical compressors are particularly well-suited for low to medium-pressure applications, where they can achieve higher efficiencies than mechanical compressors. Because there are no mechanical losses associated with moving parts, electrochemical compression can be more energy-efficient, especially at lower pressure ranges.

Energy Costs: The energy consumption of electrochemical compressors is generally lower than that of mechanical compressors, particularly when compressing hydrogen to moderate pressures (e.g., up to 350 bar). However, scaling electrochemical compression technology for large-scale industrial applications remains a challenge. Current research is focused on improving the performance and durability of proton exchange membranes, as well as developing new catalysts that can reduce the energy required for the electrochemical compression process.

Despite these challenges, electrochemical compression holds significant potential for future hydrogen infrastructure, particularly in applications where maintenance costs and energy efficiency are critical considerations. For example, electrochemical compressors could be used in distributed hydrogen production facilities, where their low maintenance requirements and high efficiency could make them an attractive option.

3. Cryogenic Compression

Cryogenic compression is another method used to compress hydrogen, although it operates on a different principle than mechanical and electrochemical compression. In cryogenic compression, hydrogen gas is cooled to extremely low temperatures (around -253°C) to liquefy it. Once in liquid form, hydrogen can be stored at much lower pressures, which reduces the energy required for compression.

Cryogenic compression is particularly useful for applications where long-term storage or transportation of hydrogen is required, such as in the case of hydrogen exports or large-scale energy storage. By reducing hydrogen to its liquid state, cryogenic compression allows for more compact and efficient storage, making it easier to transport large quantities of hydrogen over long distances.

Energy Costs: While cryogenic compression reduces the energy required for maintaining high pressure, it introduces energy costs associated with cooling hydrogen to cryogenic temperatures. The liquefaction process is energy-intensive, typically consuming 30-40% of the energy content of the hydrogen. As a result, cryogenic compression is generally reserved for specific applications where the benefits of long-term storage or transportation outweigh the high initial energy costs.

Efforts to improve the efficiency of cryogenic compression are focused on reducing the energy consumption of the liquefaction process. Advances in cryogenic heat exchangers and refrigeration systems are helping to lower the energy requirements for cooling hydrogen to cryogenic temperatures. Additionally, research into alternative cryogenic fluids and insulation materials is aimed at reducing the energy losses associated with storing liquid hydrogen over extended periods.

Achieving Balance: Efficiency vs. Energy Costs

Achieving the right balance between energy efficiency and cost-effectiveness in hydrogen compression technologies is crucial for the hydrogen economy. Each compression method has its strengths and weaknesses, and the choice of technology depends on the specific application and the trade-offs that are acceptable in terms of energy consumption, maintenance costs, and technical complexity.

Here are some of the key strategies being pursued to improve the efficiency of hydrogen compression while keeping energy costs in check:

1. Optimizing Mechanical Compressors

Mechanical compressors are likely to remain a dominant technology for hydrogen compression due to their widespread use and familiarity within the industry. To improve the efficiency of mechanical compressors, researchers are focusing on several key areas:

• Advanced Materials: The use of high-performance materials, such as lightweight alloys, ceramics, and advanced polymers, can reduce friction and wear in mechanical compressors, thereby improving efficiency and extending service life.

• Optimized Compression Cycles: Engineers are developing new compression cycles that minimize energy losses during the compression process. This includes optimizing the number of compression stages and incorporating intercooling systems to reduce the heat generated during compression.

• Smart Control Systems: The integration of smart control systems can help optimize the operation of mechanical compressors, adjusting parameters such as pressure, flow rate, and temperature in real-time to maximize efficiency.

2. Scaling Electrochemical Compression

Electrochemical compression holds great promise for improving efficiency in hydrogen compression, particularly in smaller-scale applications where mechanical compressors may be less efficient. However, scaling electrochemical compression technology for large-scale industrial use requires further advancements in materials and system design:

• Membrane Technology: Improving the performance and durability of proton exchange membranes (PEMs) is a key area of research. New membrane materials with higher proton conductivity and longer lifespans could significantly enhance the efficiency of electrochemical compressors.

• Catalyst Development: Advances in catalyst materials, such as platinum-free catalysts or catalysts with higher activity, can reduce the energy consumption of electrochemical compressors while maintaining high performance.

• System Integration: Integrating electrochemical compressors with other hydrogen production and storage systems can help optimize overall efficiency. For example, electrochemical compressors could be used in conjunction with electrolyzers to compress hydrogen as it is produced, reducing the need for separate compression equipment.

3. Hybrid Compression Systems

Hybrid compression systems, which combine mechanical and electrochemical compression technologies, are also being explored as a way to optimize efficiency across different pressure ranges. These systems leverage the strengths of each technology, using mechanical compressors for high-pressure applications and electrochemical compressors for low-pressure applications.

Hybrid systems offer greater flexibility and efficiency, allowing users to optimize compression based on the specific requirements of their application. For example, a hybrid system could be used in a hydrogen fueling station, where electrochemical compressors handle the initial compression to moderate pressures, and mechanical compressors take over for the final high-pressure compression.

4. Energy Recovery Systems

One of the key challenges in hydrogen compression is the energy lost during the compression process, primarily in the form of heat. Energy recovery systems are being developed to capture and reuse this lost energy, improving the overall efficiency of the compression process.

• Heat Recovery: Advanced heat exchangers can capture the heat generated during hydrogen compression and use it to power other parts of the system, such as preheating the hydrogen before it enters the compressor or generating electricity through thermoelectric devices.

• Pressure Recovery: In some systems, energy recovery devices can capture the pressure energy released during depressurization and use it to assist with the compression process, reducing the overall energy consumption.

The Future of Hydrogen Compression Technologies

As hydrogen continues to gain traction as a key player in the global energy transition, the need for efficient and cost-effective compression technologies will only grow. Advances in materials science, control systems, and hybrid technologies will play a critical role in reducing the energy costs associated with hydrogen compression.

The future of hydrogen compression will likely involve a combination of technologies, each optimized for different applications. Mechanical compressors will continue to be widely used, but electrochemical compression and cryogenic methods will become more prevalent as research and development drive improvements in efficiency and scalability.

Ultimately, the goal is to minimize the energy footprint of hydrogen compression, ensuring that hydrogen remains a truly green energy carrier that can compete with other renewable energy sources on both cost and performance.

By improving existing methods and exploring new technologies, the hydrogen industry is making significant strides toward more efficient and cost-effective compression solutions. These advancements will help pave the way for the widespread adoption of hydrogen as a clean energy source, driving the transition to a sustainable future.
