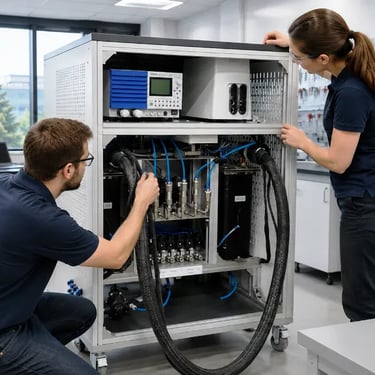

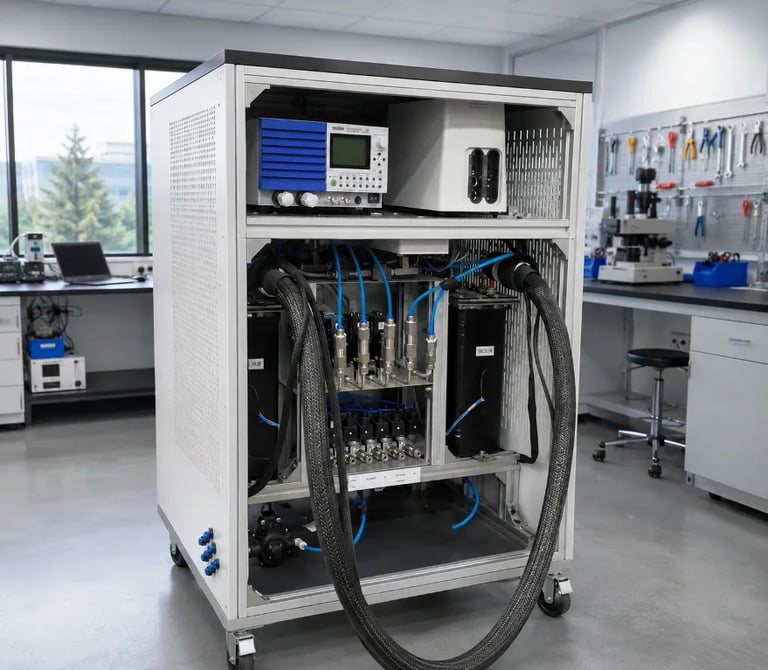

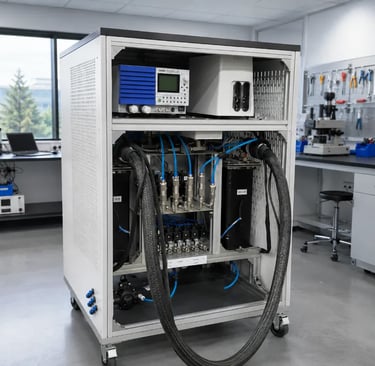

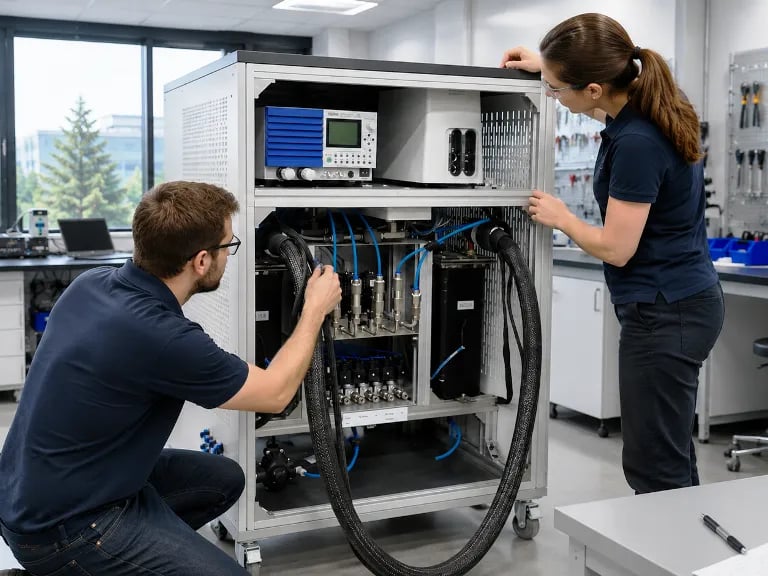

Fuel Cell Benchmarking System
HYDRO_FCBS
System Includes:
1. Fuel Cell Test Platform
PEM Fuel Cell Stack (User Selectable)
Modular Fuel Cell Mounting Fixture
Fuel Cell Interface Panel
Stack Protection System
2. Hydrogen Supply Unit
Hydrogen Storage Cylinder Interface
Pressure Regulation System
Mass Flow Control Unit
Hydrogen Safety Assembly
3. Air Supply System
Controlled Air Delivery Unit
Air Flow Meter
Humidity Control Module (Optional)
Air Pressure Regulation System
4. Electronic Load System
Programmable DC Electronic Load
Dynamic Load Profile Generation
Constant Current / Constant Voltage Modes
Automated Load Cycling
5. Measurement & Instrumentation
Fuel Cell Voltage Monitoring
Individual Cell Voltage Measurement
Current Measurement
Hydrogen Flow Measurement
Air Flow Measurement
Temperature Monitoring
Pressure Monitoring
6. Data Acquisition & Control
Real-Time Monitoring Software
Automated Test Sequencing
Data Logging System

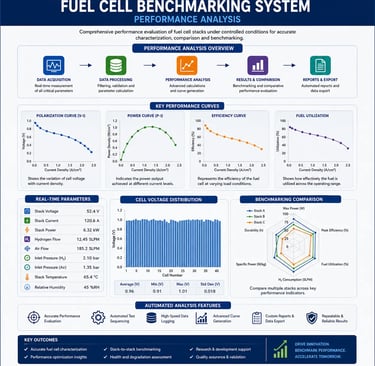

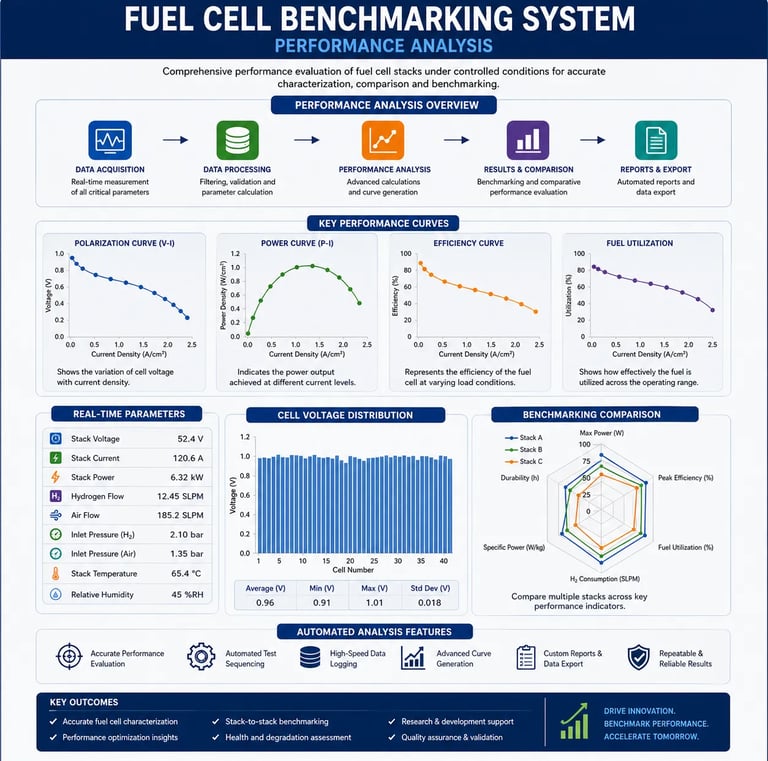

Performance Analysis Interface
Why Fuel Cell Benchmarking System ?
The Fuel Cell Benchmarking System enables researchers, engineers, and students to evaluate and compare the performance of fuel cell stacks under controlled operating conditions. Unlike conventional laboratory demonstrations, the system provides accurate characterization of fuel cell behavior through automated testing, real-time monitoring, and detailed performance analysis. Users can investigate efficiency, hydrogen consumption, power output, durability, and operating characteristics while benchmarking different fuel cell technologies and stack configurations.
Fuel cell characterization and benchmarking are essential activities in fuel cell development, validation, manufacturing, and quality assurance. The Fuel Cell Benchmarking System helps learners and researchers develop practical competencies in:
Fuel cell performance evaluation
Polarization curve analysis
Fuel cell efficiency determination
Hydrogen utilization studies
Stack validation and benchmarking
Dynamic load testing
Electrochemical system analysis
Fuel cell diagnostics
Performance degradation assessment
Research and development methodologies
These skills are highly valuable for professionals working in fuel cell manufacturing, hydrogen mobility, energy storage, and advanced electrochemical research.
The system supports advanced experiments such as:
Fuel cell polarization curve generation
Fuel cell power curve analysis
Hydrogen consumption measurement
Fuel utilization efficiency determination
Air-to-fuel ratio studies
Load response characterization
Dynamic load profile testing
Cell voltage distribution analysis
Temperature impact on performance
Pressure impact on fuel cell operation
Comparative benchmarking of multiple stacks
Fuel cell degradation and durability studies
These experiments help users correlate electrochemical principles with measurable performance characteristics and real-world fuel cell applications.
DEVELOP INDUSTRY RELEVANT SKILLS
LEARN THROUGH EXPERIMENTS

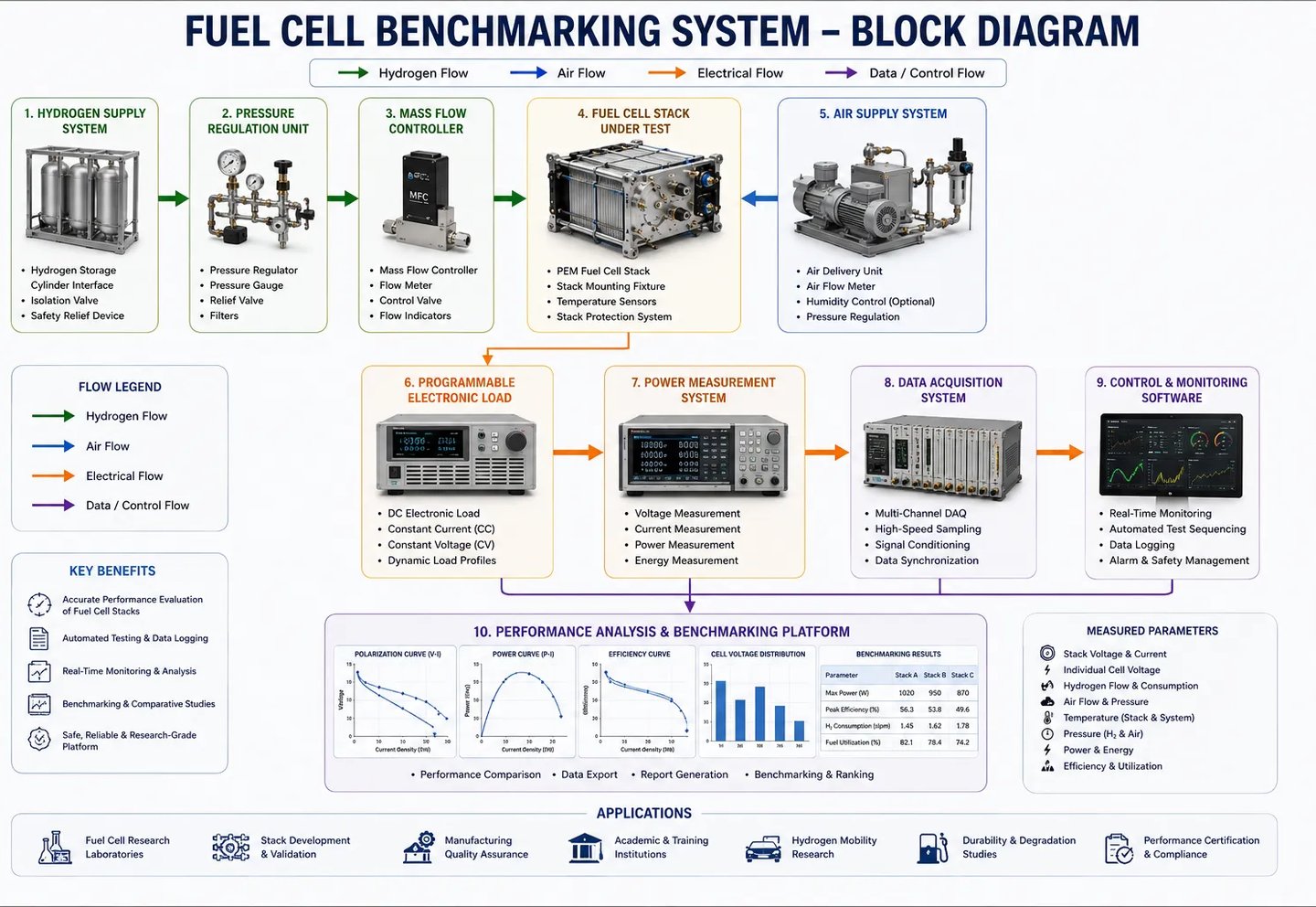

Block Diagram
